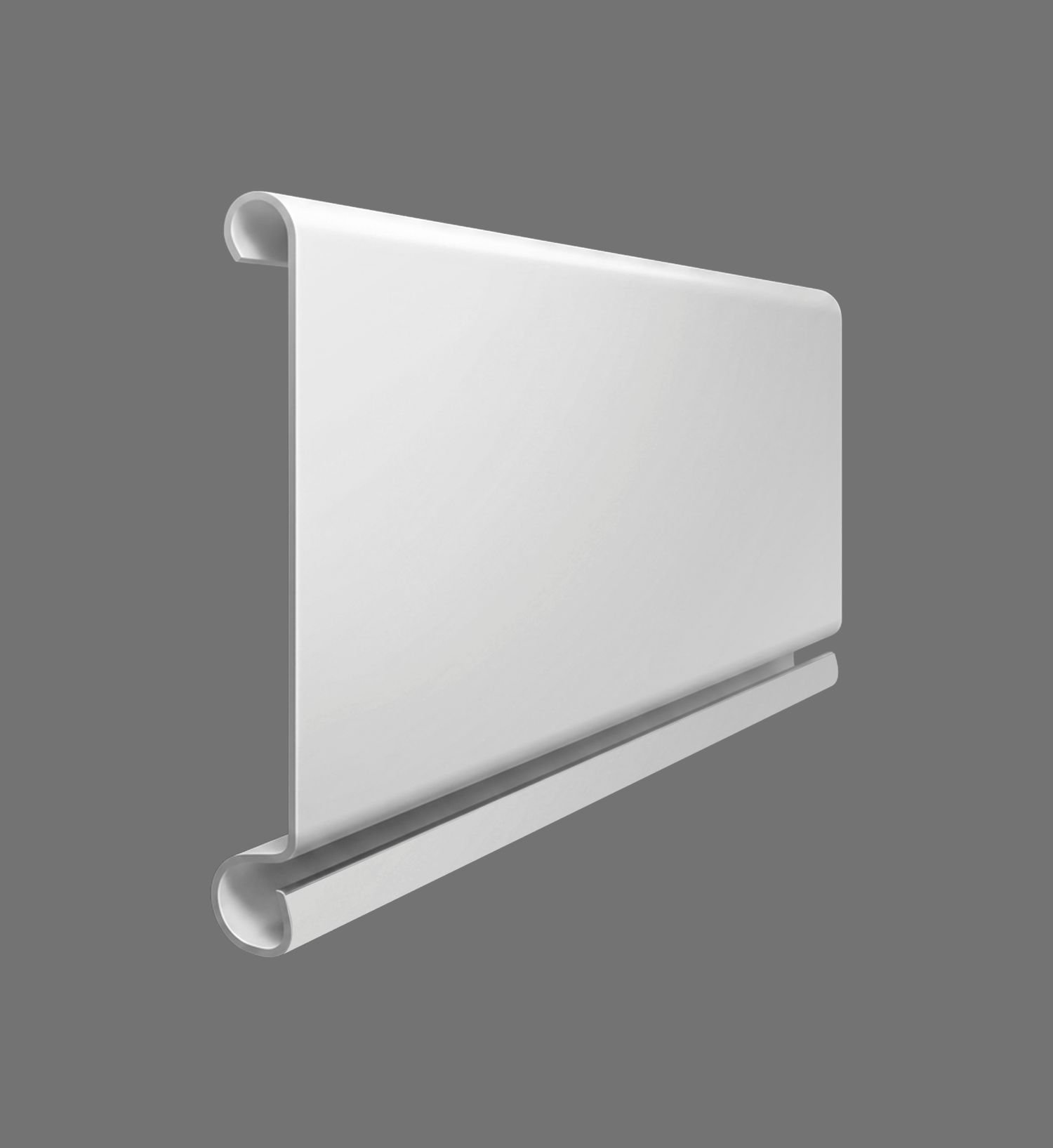

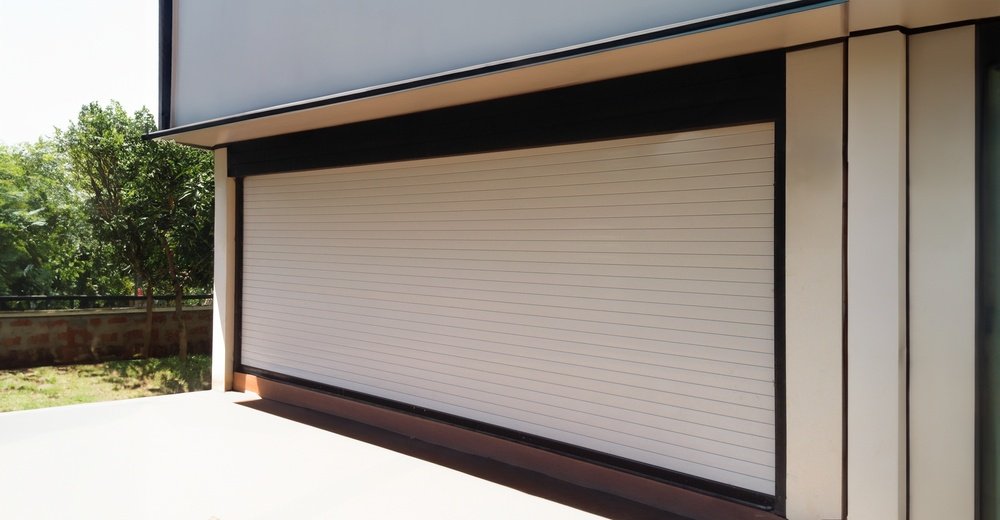

Full Flat Screens
upto 6 meters
Engineered for security, convenience, and efficiency, our jewellery cabinet safety shutters offer robust protection without compromising accessibility. Their smooth, reliable operation allows staff to open and secure cabinets quickly, significantly reducing setup and closing times. By streamlining daily workflows, these shutters help save valuable man-hours, improve productivity, and ensure the safe storage of high-value jewellery
- Available in Standard & Customised RAL Colours
- Available in GL / PPGL / 304 SS / AL
- Compact Design
- Compatible with Extruded Aluminium Channel & Bottom Profile
- Grease-less
- Sound-free
| Feature | Specification |
|---|---|
| Base Material | Marine Grade Galvalume prefinished colour coated steel laths |
| Material Thickness | 0.90mm to 1.05mm |
| Screen Locking | Double side interlocking + double side nylon beadings |
| Profile Height | 75mm |
| Profile Shape | Full flat |
| Protective Coating | Zinc Aluminium (55% Aluminium, 43.4% Zinc, 1.6% Silicon) |
| Protective Coating Thickness | 120/150 GSM |
| Finish | Natural Galvalume / Pre Finished RAL Colours |
| Weight | 13.2Kg/m2 approx |
| Strength | 550mpa tensile strength |
| Perforation Pattern | Micro, Nano, Check |

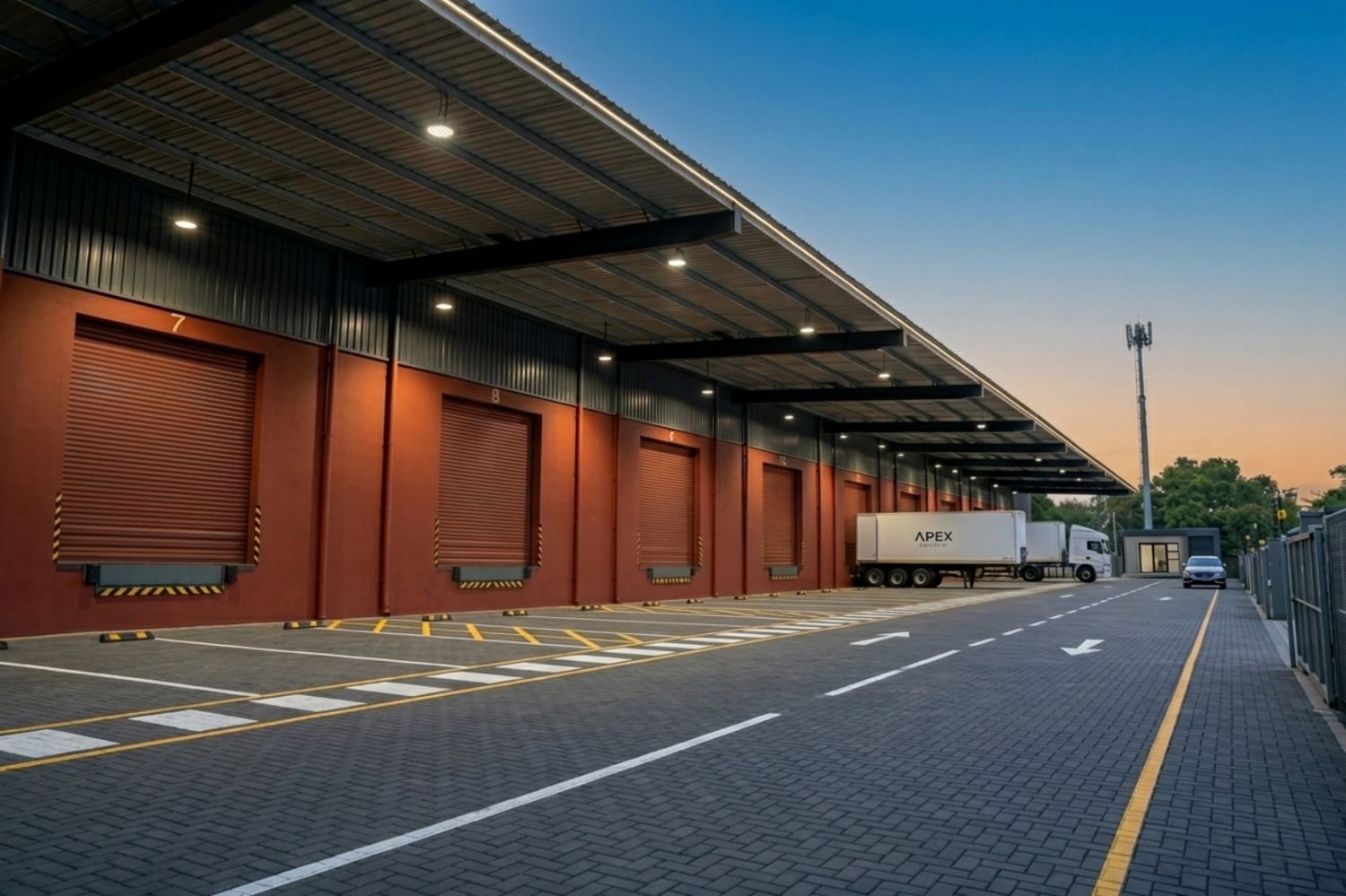

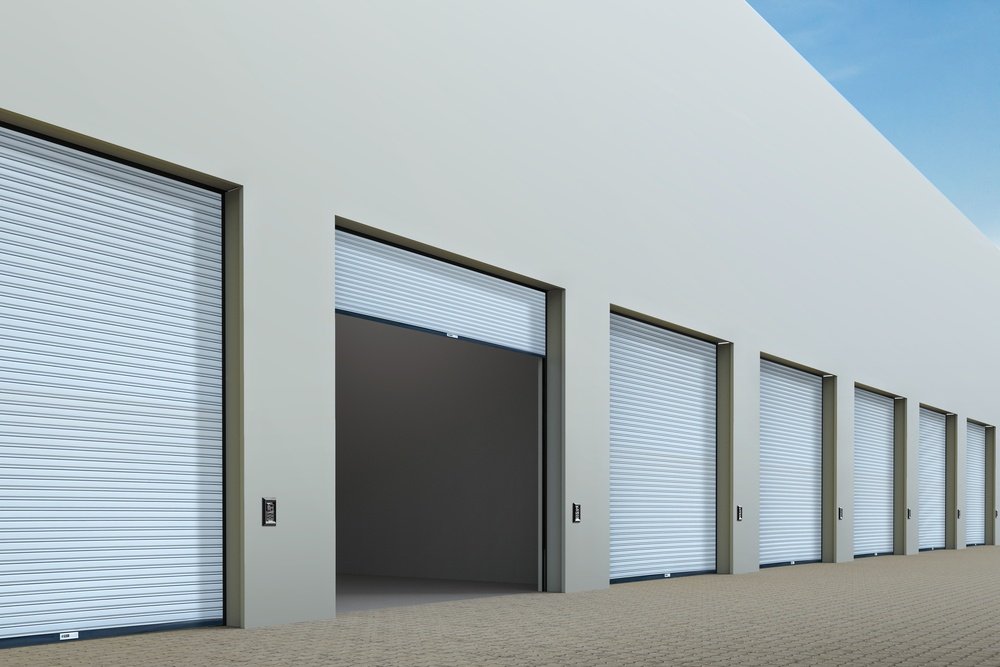

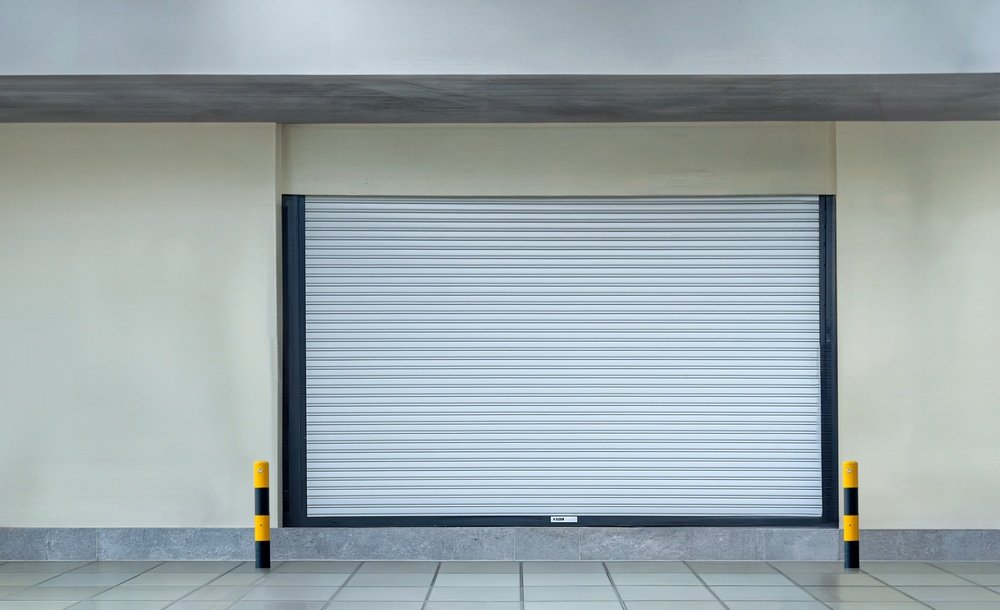

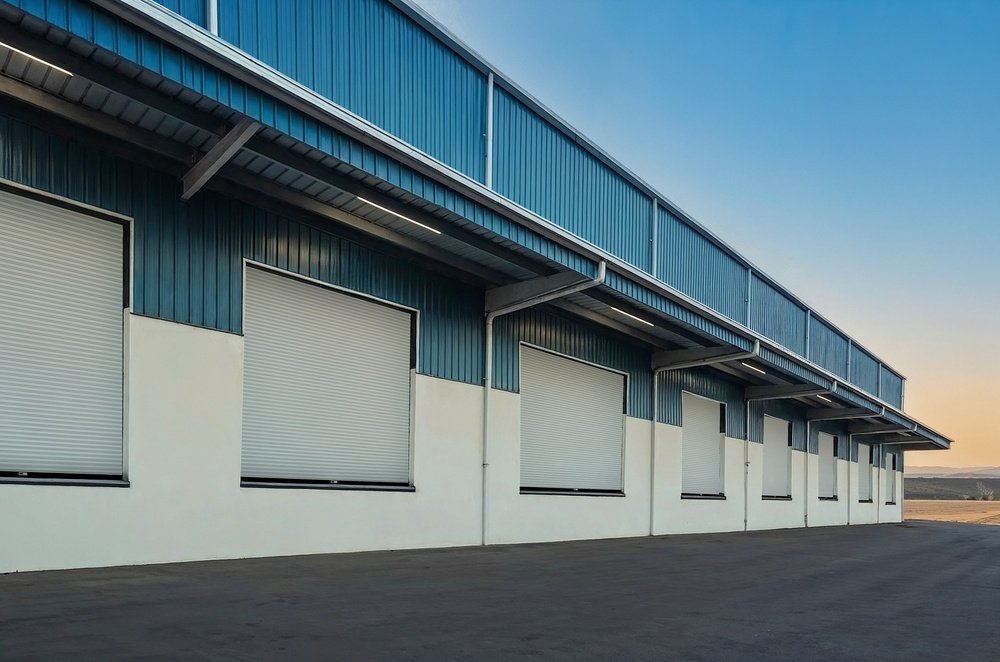

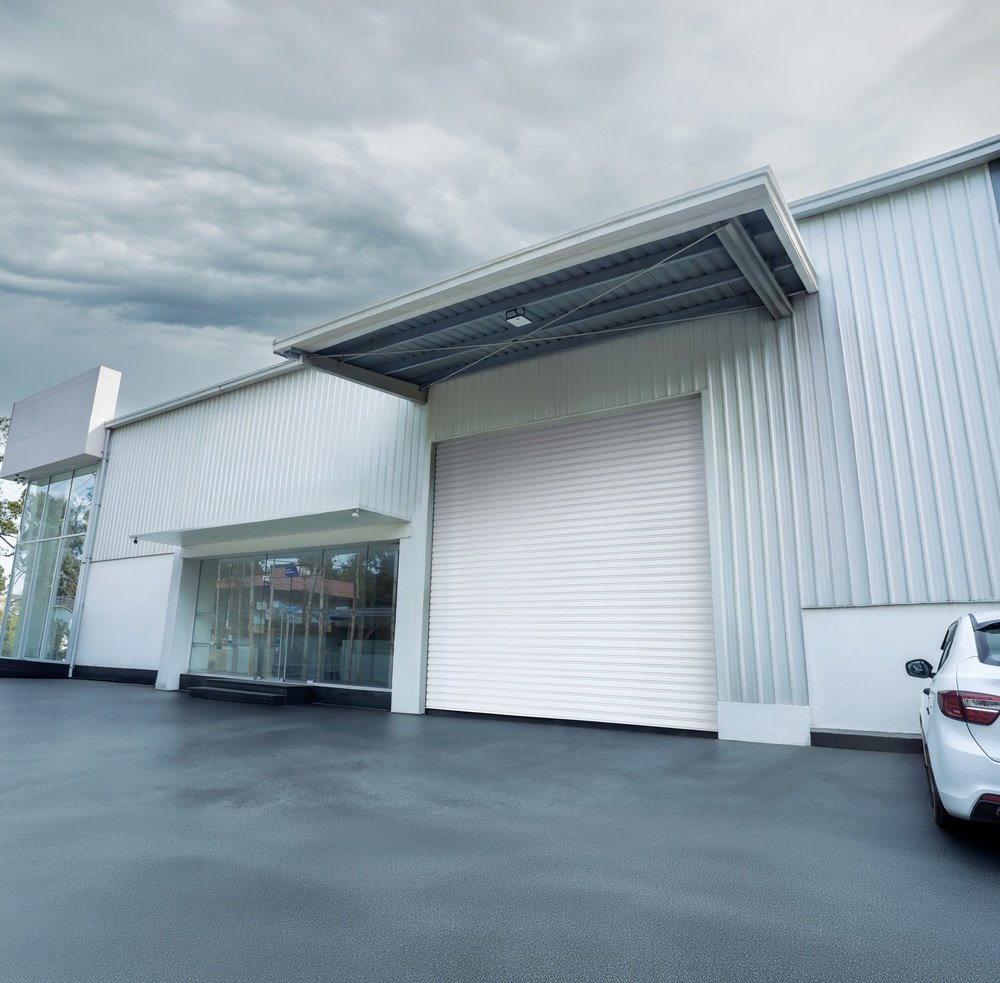

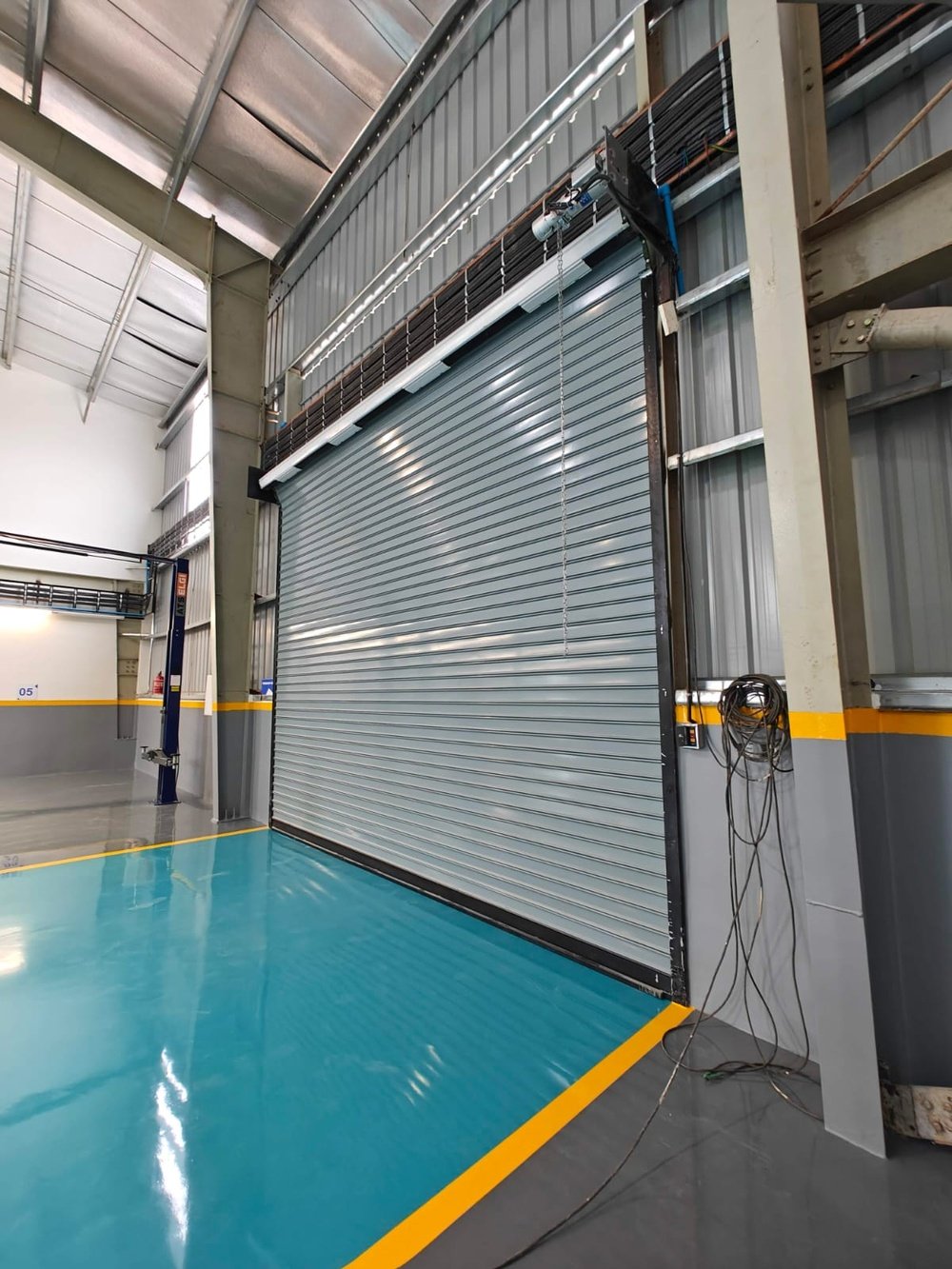

magna
upto 8 meters
Our Heavy Duty Shutters are engineered for applications requiring the highest level of security. As one of the most robust shutter solutions in our portfolio, they are ideally suited for integration with anti-theft systems, providing enhanced protection for high-value assets. Designed with security as the primary focus, these shutters are an excellent choice for high-security environments such as jewelry stores, financial institutions, and other facilities where maximum protection is essential
- Industrial RAL Colours
- Available in GL / PPGL / 304 SS
- Compatible for Extruded Aluminium Channel and Bottom Profile
- Grease-less
- Sound-free
| Specification | Details |
|---|---|
| Base Material | Marine Grade Single skinned Galvalume prefinished colour coated steel laths |
| Material Thickness | 0.90 MM to 1.20 MM (Depends on span) |
| Screen Locking | Double side interlocking + nylon beadings on both side end to end |
| Profile Height | 100 mm |
| Profile Depth | 15 mm |

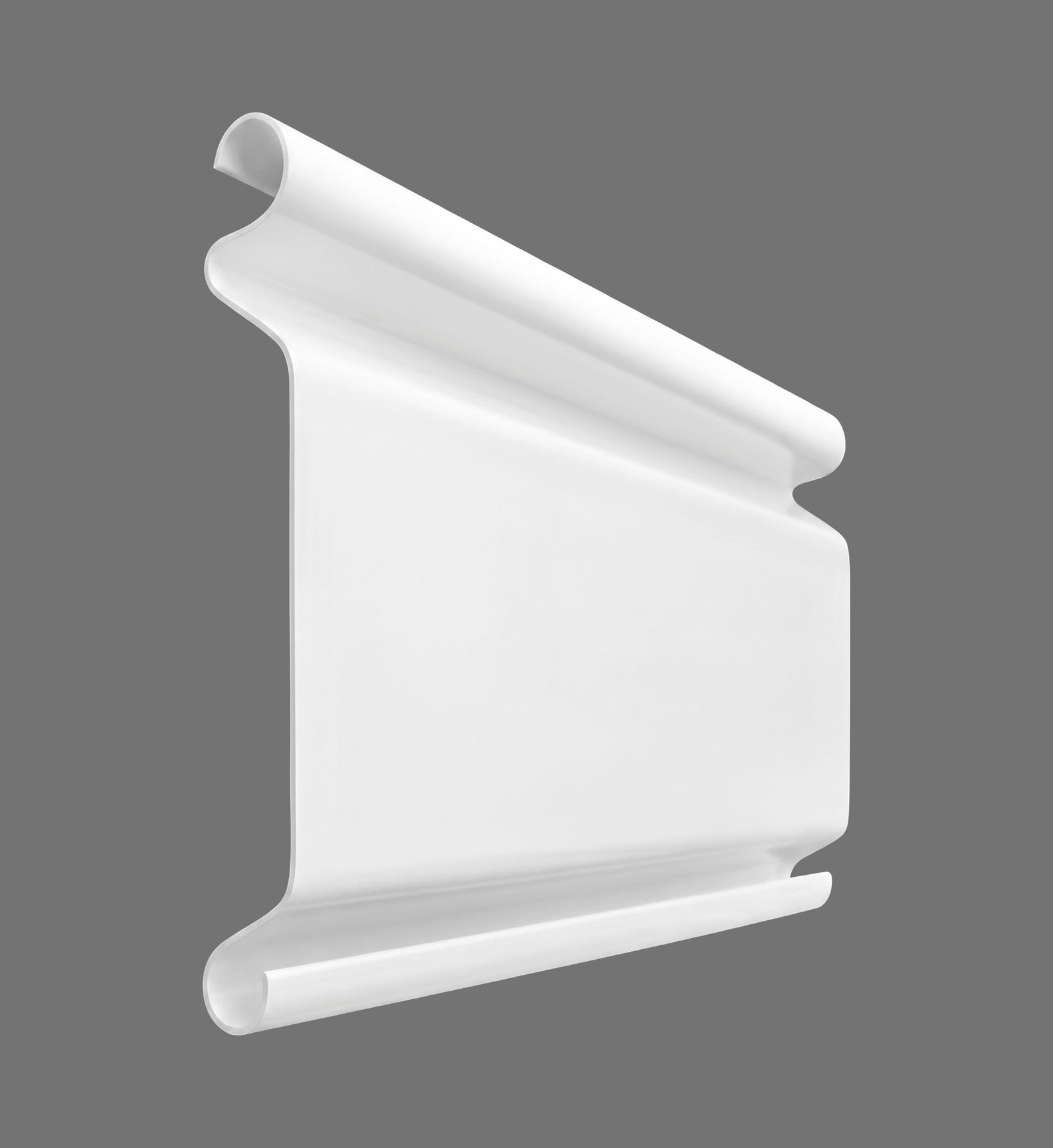

| Profile Shape | Magna Profile with Corrugation and Lines |
| Protective Coating | Zinc Aluminium Coating |
| Protective Coating Combination | 55% Aluminium, 43.4% Zinc & 1.6% Silicon |
| Protective Coating Thickness | 150 GSM |
| Finish | Natural Galvalume / Pre Finished RAL Colours |
| Weight | 15.5 Kg/m² approx |
| Strength | 550 MPa tensile strength |
| Wind Load Resistance | Class 2 (EN 12424) |
| Operating Limit | Safe operating area |

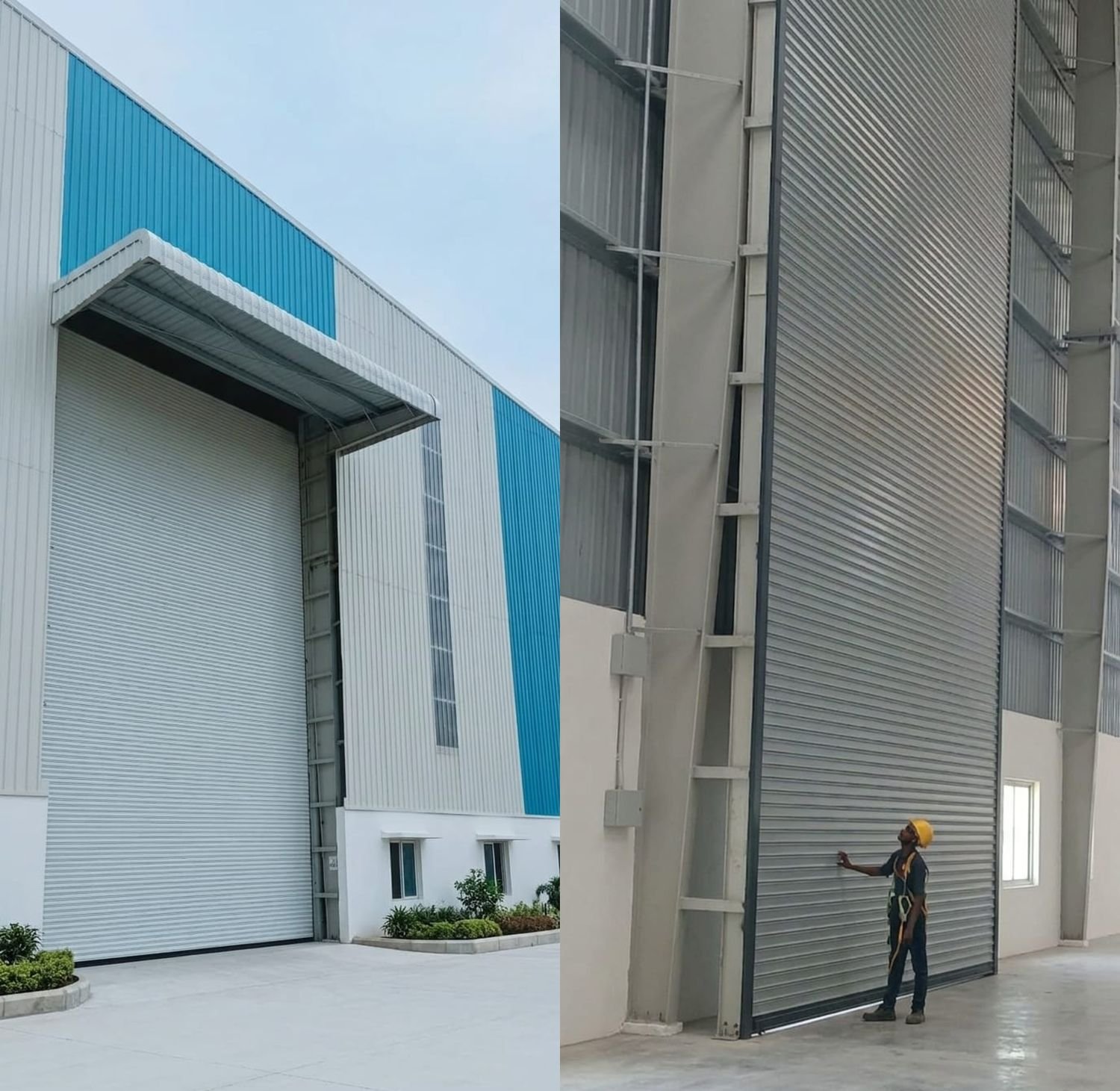

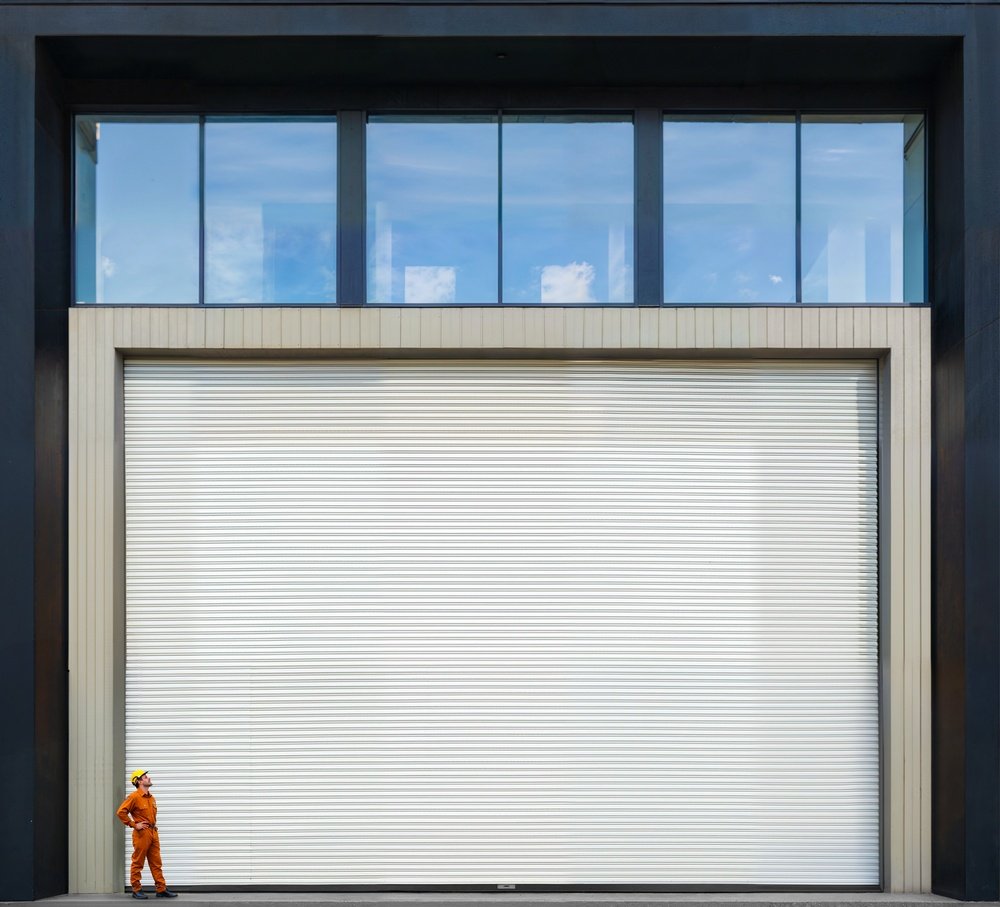

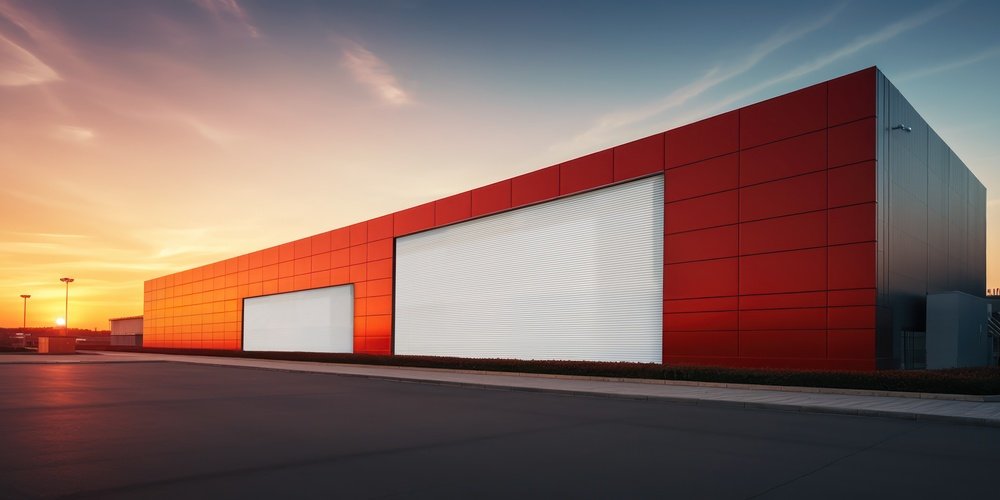

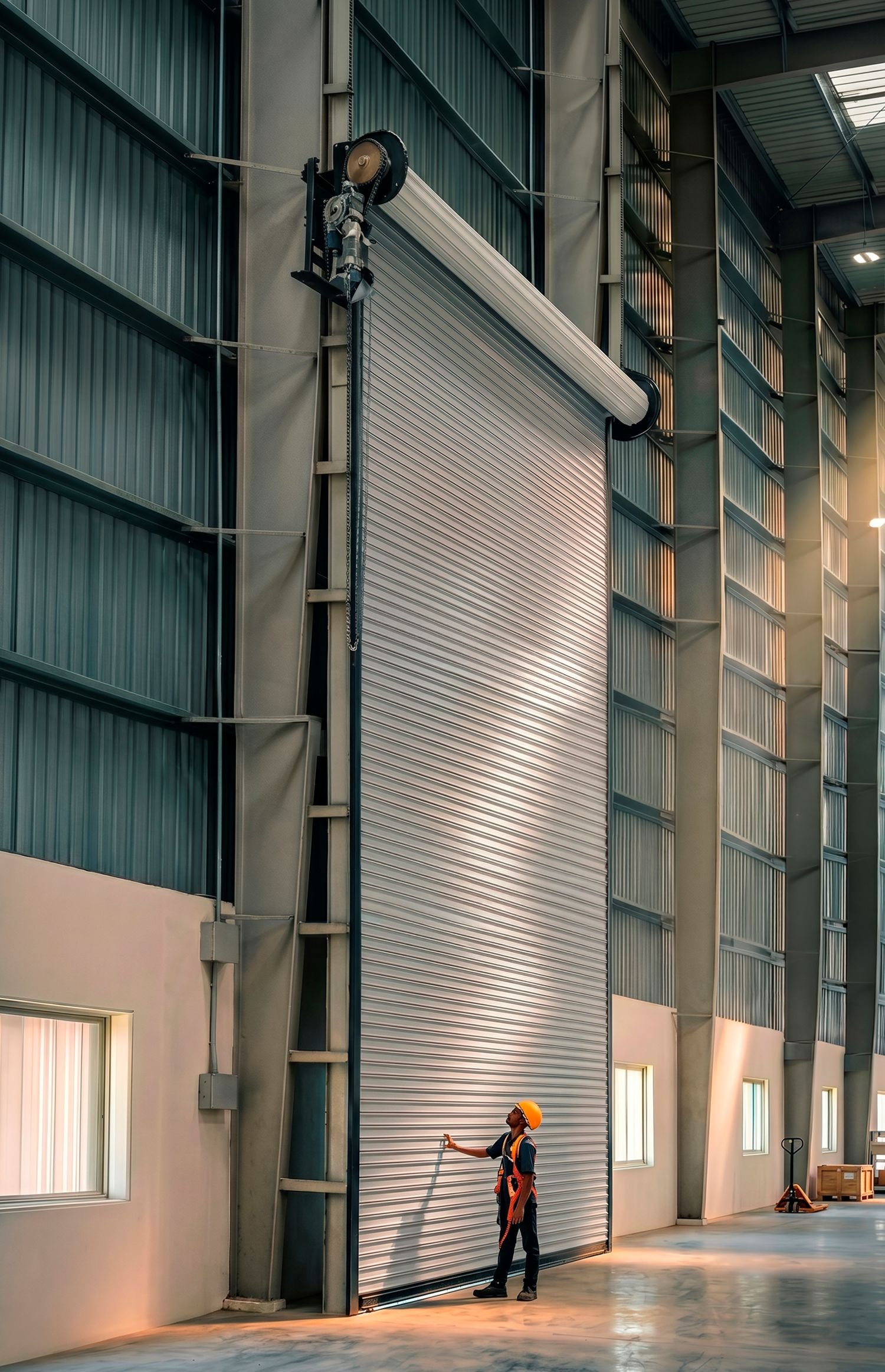

Ultima
upto 16 meters
Our Widerspan Shutters are specifically designed for commercial buildings that require secure, large-span openings without compromising on aesthetics or performance. Capable of covering openings of up to 16 meters, they provide significantly wider coverage than conventional commercial shutters, making them ideal for shopping malls, commercial complexes, showrooms, logistics centers, and large retail spaces.
Engineered for strength and reliability, Widerspan Shutters maintain the same high standards of quality, durability, and operational efficiency as our other premium shutter solutions. Their robust construction and long service life ensure dependable performance, even across extra-wide openings, delivering a secure and seamless solution for modern commercial applications
- Industrial RAL Colours
- Available In Galvalume
- Compatible For Extruded Aluminium Bottom Profile
- Heavy Wind Load Resistance
- Fire rated certified Design
| feature | Specification |
|---|---|
| Base Material | Marine Grade Single skinned Galvalume prefinished colour coated steel laths |
| Material Thickness | 1.05 mm - 1.25 mm |
| Screen Locking | Double side interlocking + nylon beadings on both side end to end |
| Profile Height | 102 mm |
| Profile Depth | 20 mm |
| Fire Rating | 2 Hours fire rating As per IS 3614:1992 (Part-II) - Tested and certified by BIS and NABL Recognized lab. |

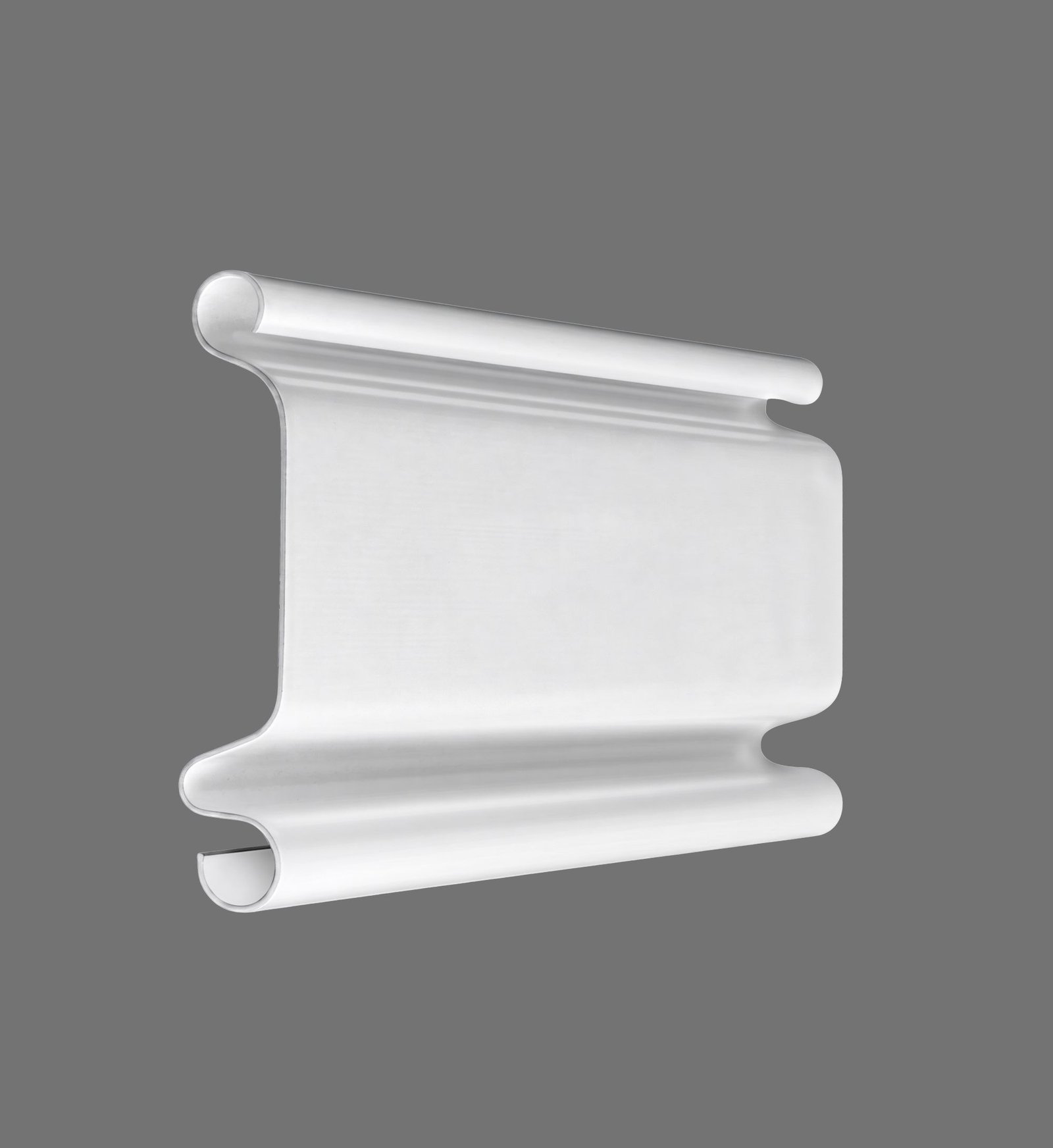

| Profile Shape | Mega Profile with corrugation |
| Protective Coating | Zinc Aluminium Coating (150 GSM) |
| Coating Combination | 55% aluminium, 43.4% zinc & 1.6% silicon |
| Finish | Natural Galvalume / Pre Finished RAL Colours |
| Weight | 17.5 Kg/m² approx |
| Strength | 550mpa tensile strength |
| Wind Load Resistance | Class 2 (EN 12424) |

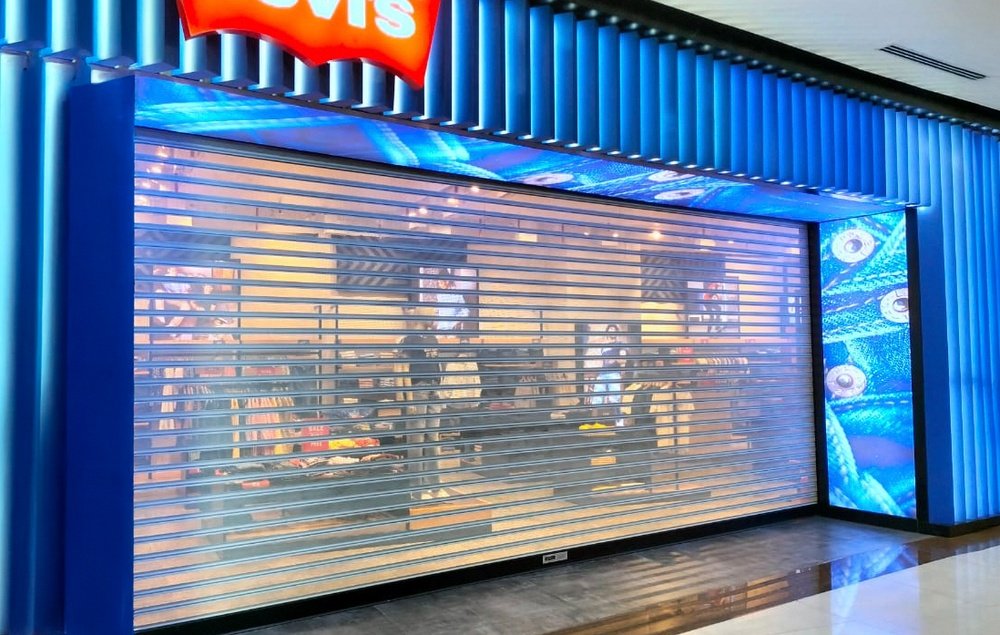

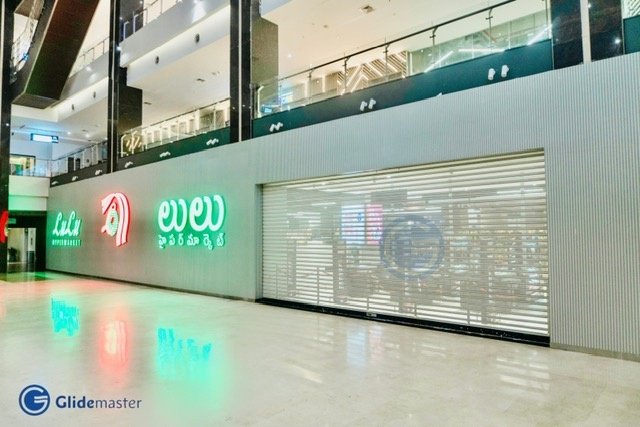

transparent shutters
Specifically designed for commercial spaces that require both safety and visibility, our transparent shutters provide a perfect blend of security and transparency, making them ideal for various business environments. We offer a diverse product range to meet customer requirements, including polycarbonate shutters, poly window shutters, and micro-perforated or check perforated in galvalume aluminium and stainless steel shutters. Each product is crafted with precision to align with your brand identity, enhancing the visual appeal of your commercial space.

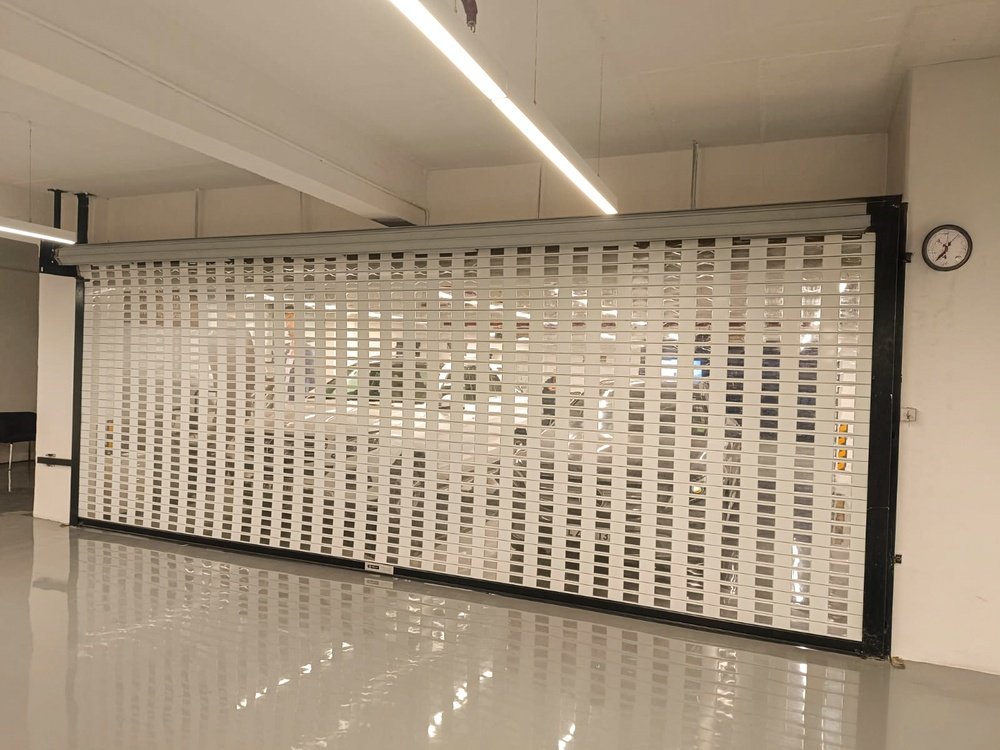

Introducing our single skin perforated shutters, engineered for optimal visibility and aesthetics. Featuring high precision Nano/Micro/Check-perforation technology, these shutters provide uniform brightness while offering enhanced privacy-allowing clear outward views while maintaining discretion inside. Offering about 85% visibity with airflow.
A polycarbonate rolling shutter is made from strong, transparent polycarbonate slats or strips that roll up into a compact housing above the opening. Polycarbonate rolling shutters feature clear or tinted polycarbonate panels or polycarbonate strips interlocked with aluminium profiles or reinforced with SS rods.It combines high visibility, modern aesthetics, and robust protection.
Grill shutter provide optimum visvibity and airflow, our Pressure-Casted Classic Aluminum Links and stainless steel links has a unique grill design and are specifically featured with High Precision and High Strength for ultimate surface finish, providing a clear frame during the normal time and it is a perfect Custom fit Design which provides optimum protection according to your requirement.
Single Skin + Poly window shutters feature the latest design, combining Transparency with Exceptional Strength and Safety. Polycarbonate vision panels are strategically placed within Premium Single Skin Galvalume / Stainless Steel Shutters to create a unique style for your Garage. This innovative design ensures clear visibility while maintaining maximum security. Each profile is Meticulously Engineered to customer specifications, ensuring the Highest Level of Precision and Customization.
- Insect Proof
- Splash Proof
- Protect Dust and Weather
- Transparency control*
- Autolocking
- Manual Override
- Strong and Lightweight
- Any RAL Color powder-coating
Poly Strip Protected Vision Windows feature the latest design, combining Transparency with Exceptional Strength and Safety. Polycarbonate Strips are tightly placed within Premium Aluminium Single Skin Shutters to create a unique combination shutter profile. This innovative design ensures clear visibility while maintaining maximum security. Each profile is Meticulously Engineered to Customer Specifications, Ensuring the Highest Level of Precision and Customization.

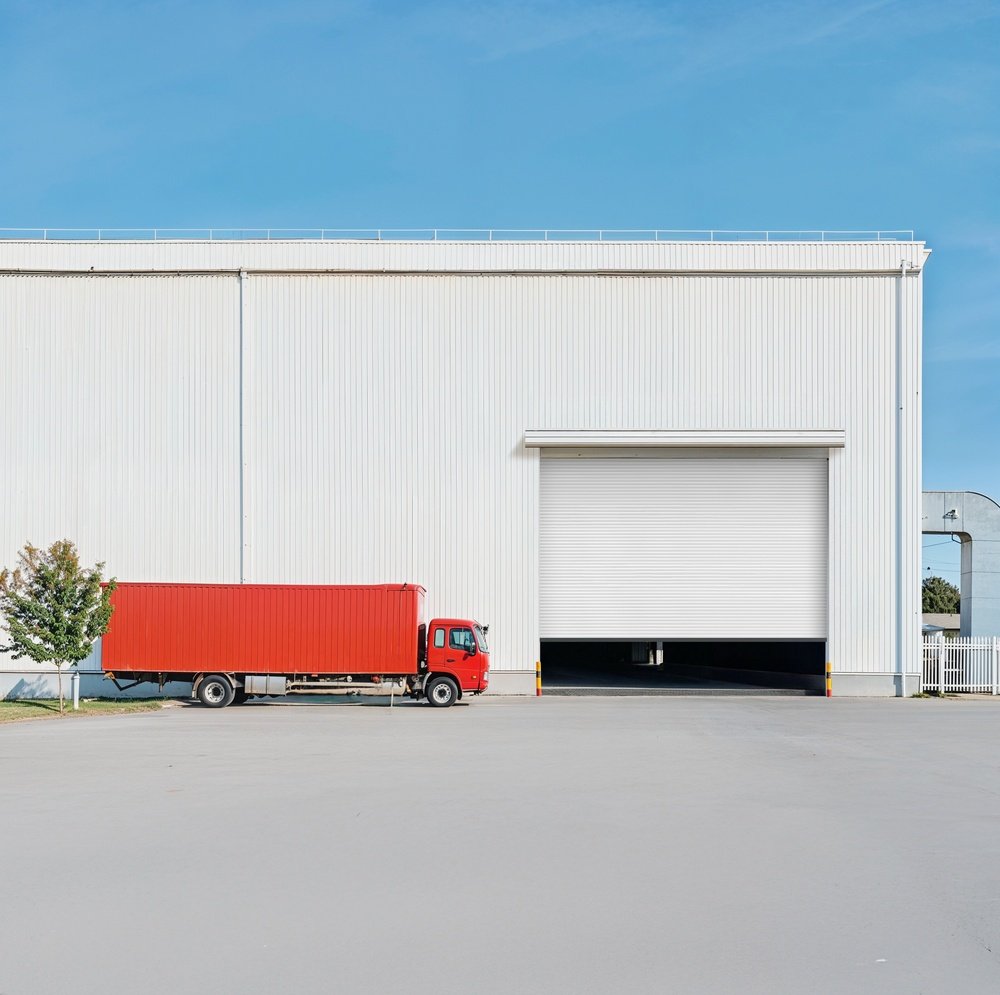

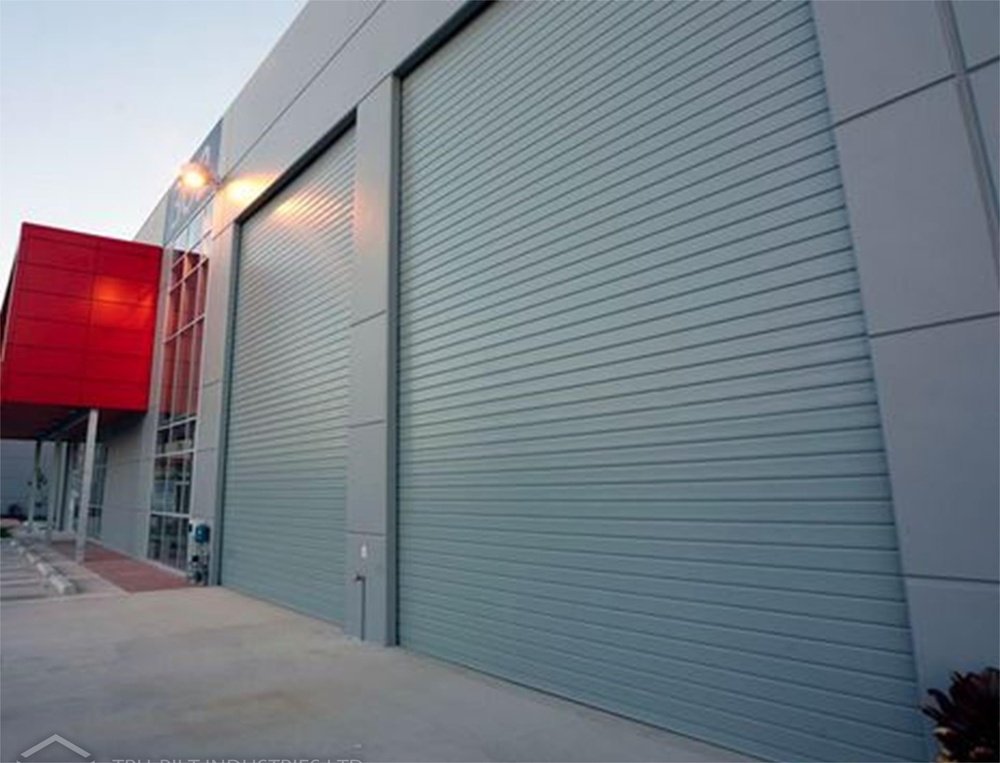

insulated shutters
Glidemaster insulated shutters are designed for industrial applications where superior thermal protection and ease of use are paramount. Constructed from thick form sections with finger trap protection, these shutters offer both safety and durability.

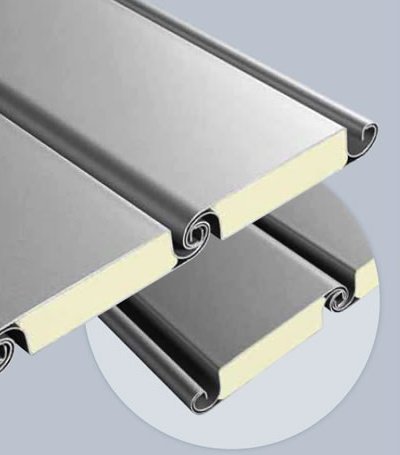

The panels are made from double-skinned, prefinished galvanised steel, with a thickness of 40mm, providing robust strength and insulation. The core is insulated with high-density, CFC-free polyurethane foam, ensuring excellent thermal protection and energy efficiency.
Engineered for vertical operation, these shutters are designed for the highest ease and flexibility of use, allowing quick and hassle-free operation. Choose our insulated shutters for unparalleled thermal insulation, safety, and user-friendly performance in industrial settings.
| Technical Specifications | PVC Coated Steel Slats | Aluminum Slat |
|---|---|---|
| Size | 75 / 100 mm | 75 / 100 mm |
| Nominal Thickness | 18.6 mm | 18.6 mm |
| Plate Thickness | 0.58 mm | 0.44 mm |
| Weight | 840 g/m, 10.92 kg/m² | 310 g/m, 4.0 kg/m² |
| PU Density | 60–65 kg/m³ | 60–65 kg/m³ |
| Maximum Shutter Width | < 6.0 m | < 5.0 m |
| Maximum Shutter Height | ≤ 6.0 m | ≤ 4.5 m |
| Slats Per Meter | 13 / 15 | 13 / 15 |

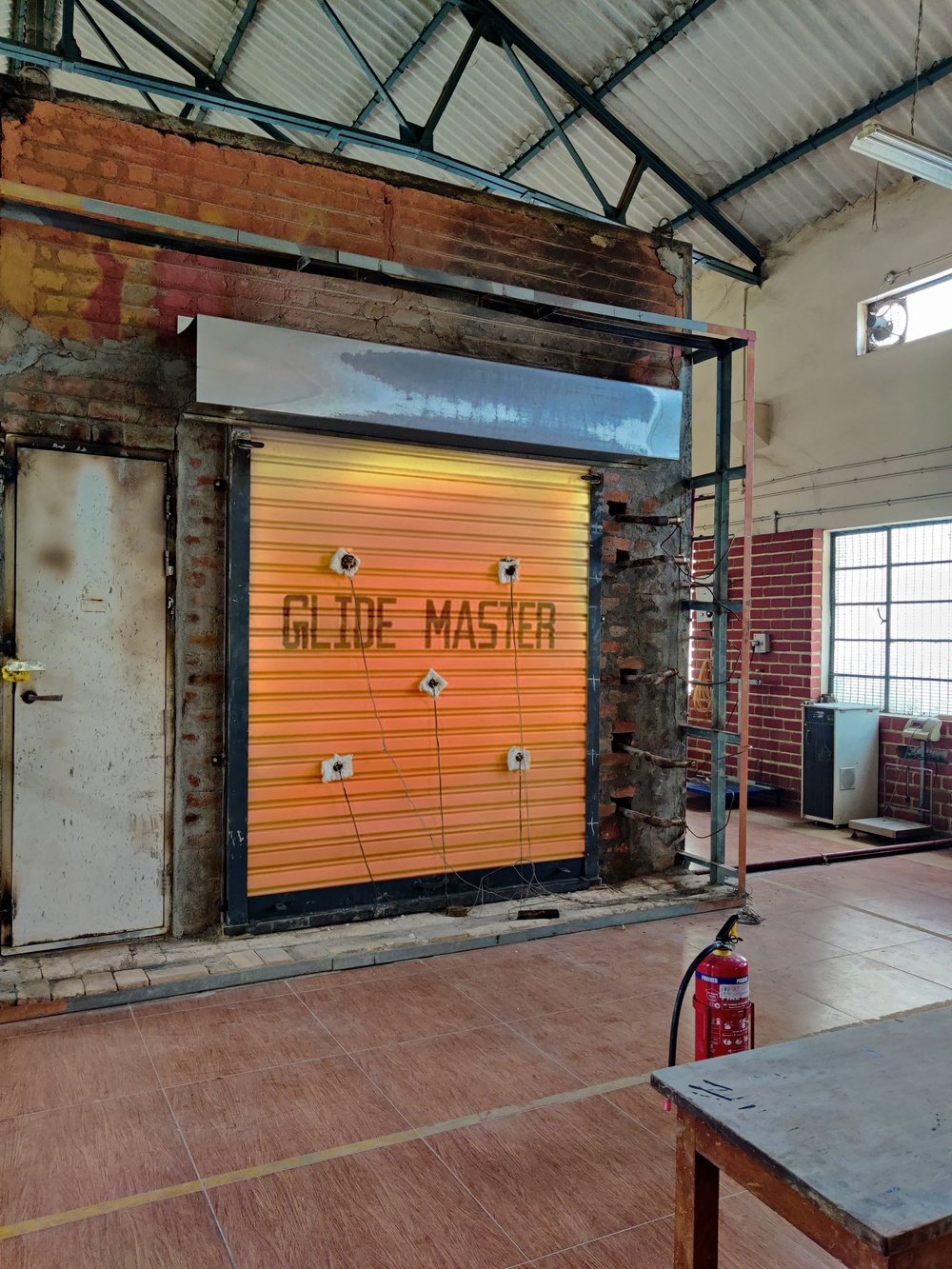

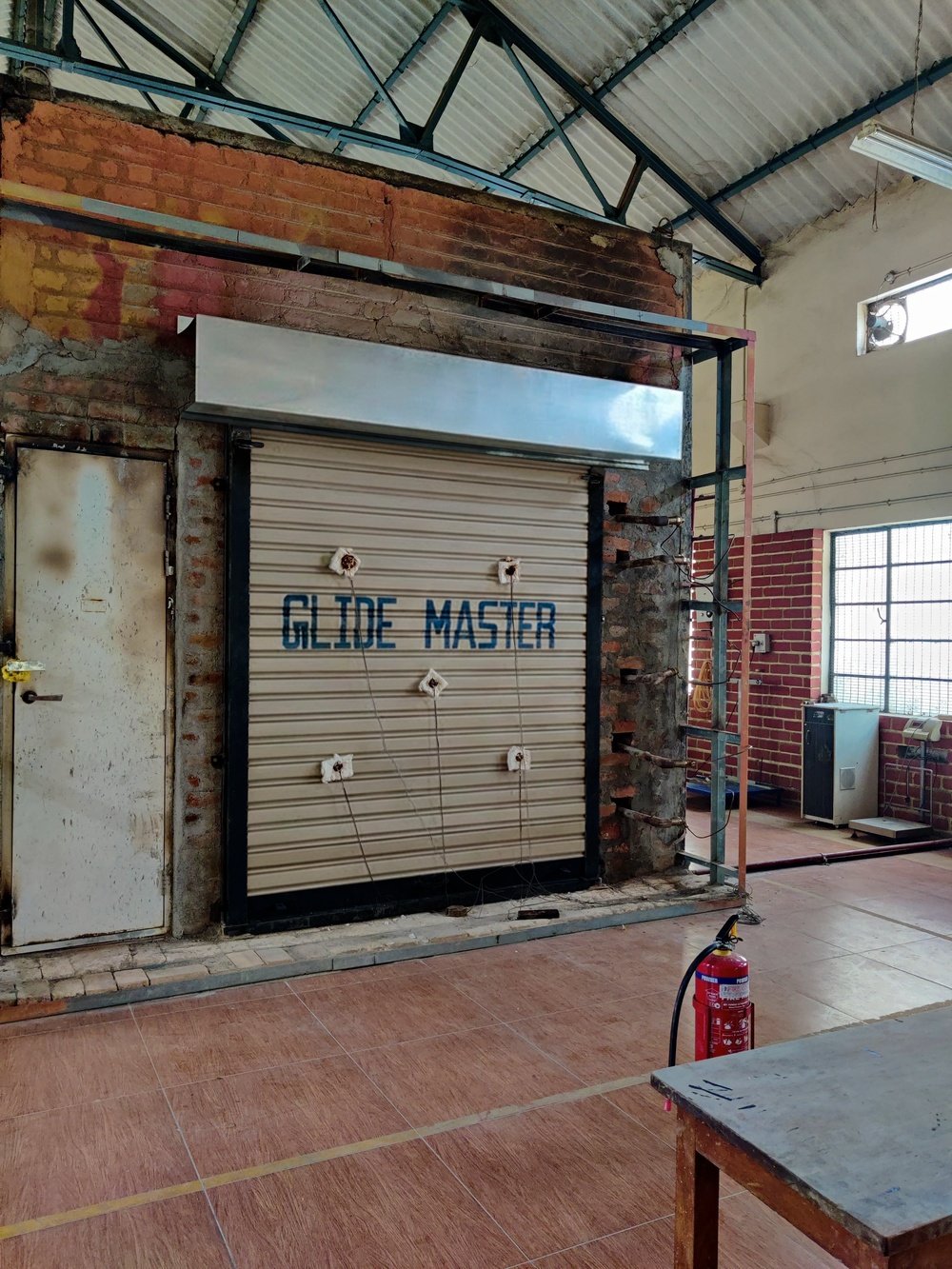

fire rated shutters
Our fire rated shutters are specifically designed and certified to withstand fire for up to 2 hours, providing crucial protection in industrial settings. Each product is rigorously tested and certified to ensure maximum safety and compliance with industry standards.
Crafted from marine-grade single skin galvalume with a prefinished colour-coated profile and special zinc-aluminium coating, these shutters offer superior durability and corrosion resistance. Equipped with specialised industrial imported heavy-duty drives, they guarantee smooth and reliable operation.
Featuring an advanced German design, our fire rated shutters offer higher wind load resistance and are 20-25% stronger than standard shutters, thanks to their high-quality materials. These shutters combine robust performance, enhanced safety, and aesthetic appeal, making them the ideal choice for protecting your industrial facilities.
- Industrial Colours
- Available in Galvalume
- Compatible for Extruded Aluminium Bottom Profile
- Heavy Wind Load Resistance
- Fire-Rated Design
| Specification | Details |
|---|---|
| Base Material | Marine Grade Galvalume prefinished + Oven baked (350°C) colour coated steel laths |
| Material Thickness | 1.05 mm to 1.20 mm (Depends on span) |
| Screen Locking | Double side mechanical interlocking |
| Profile Height | 75 / 100 mm |
| Profile Shape | Semi flat / Half Round Profile |
| Protective Coating | Zinc Aluminium Coating |
| Protective Coating Combination | 55% Aluminium, 43.4% Zinc & 1.6% Silicon |
| Protective Coating Thickness | 120 / 150 GSM |
| Finish | Pre colour coated natural finish (RAL 9003 / 9002) + Fire resistant oven baked powder coating at 350°C |
| Weight | 13.2 kg/m² approx |
| Strength | 550 MPa tensile strength |
| Fire Rating | 2 Hours fire rating as per IS 3614:1992 (Part-II). Tested and certified by BIS and NABL recognized lab. |
| Wind Load Resistance | Class 2 (EN 12424) |

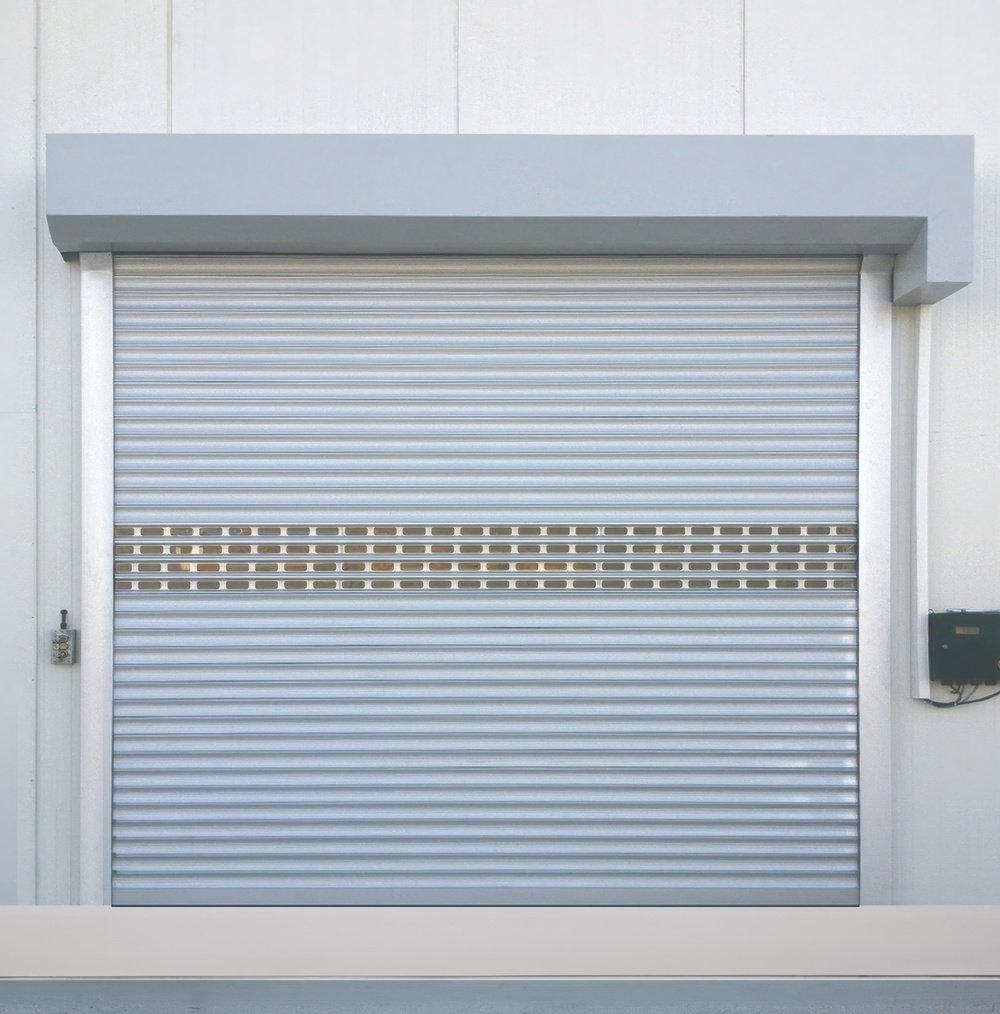

High Speed shutter
ALUSPEED High speed shutter is an aluminum roll door capable of working at 2.5-3 m/s speed. ALUSPEED work independently, as do the profiles in other shutter applications without spiral brackets.
- Safe and suitable for continuous operations
- Self-supporting construction with anti-crash protection system for bottom profile
- Smooth and silent opening and closing
- Can be equipped with full vision PVC curtain
- Modular interchangeable panels permit replacement of worn or damaged panels
- Advanced and robust control device
| Door Type | Feature / Parameter | Specification |
|---|---|---|
| Use | Internal / External Door | Standard |
| Door Sizes | Max Width | 5500 mm |
| Max Height | 5500 mm | |
| Speed | Inverter Motion system | Standard |
| Opening Speed up to | 3,0 m/s | |
| Closing Speed | 0,7 m/s | |
| Security Features | EN 13241-1 | Standard |
| Resistance to Wind Load | EN 12424 | Class 3 |
| Door Leaf Material / Surface | Polyurethane filled RAL 9006 aluminium profile | Standard |
| Curtain | Aluminium 19.0 mm | Standard |
| Guide Material / Surface | Aluminium Anodized | Standard |
| Painting in any RAL color | Optional | |
| Shaft / Operator Cover | Straight | Optional |
| Operator and Control (German brand) | Connecting Voltage (1-phase) | 220V - 1 ph, N |
| Connecting Voltage (3-phase) | 380V - 3 ph, N | |
| Open-Stop-Close Button | Standard | |
| Protection Category (Operator / Control) | IP 54 / IP 65 | |
| Emergency-OFF Button | Standard | |
| Closing Zone Monitoring (Light Grille IP 67) | Standard | |
| External Route Monitoring (Photocell) | Optional | |
| Door area Monitoring (Radar Presence Detector) | Optional | |
| Door area Monitoring (Induction Loop) | Optional | |
| Electronic Limit Switch | Standard |
