High-speed Doors

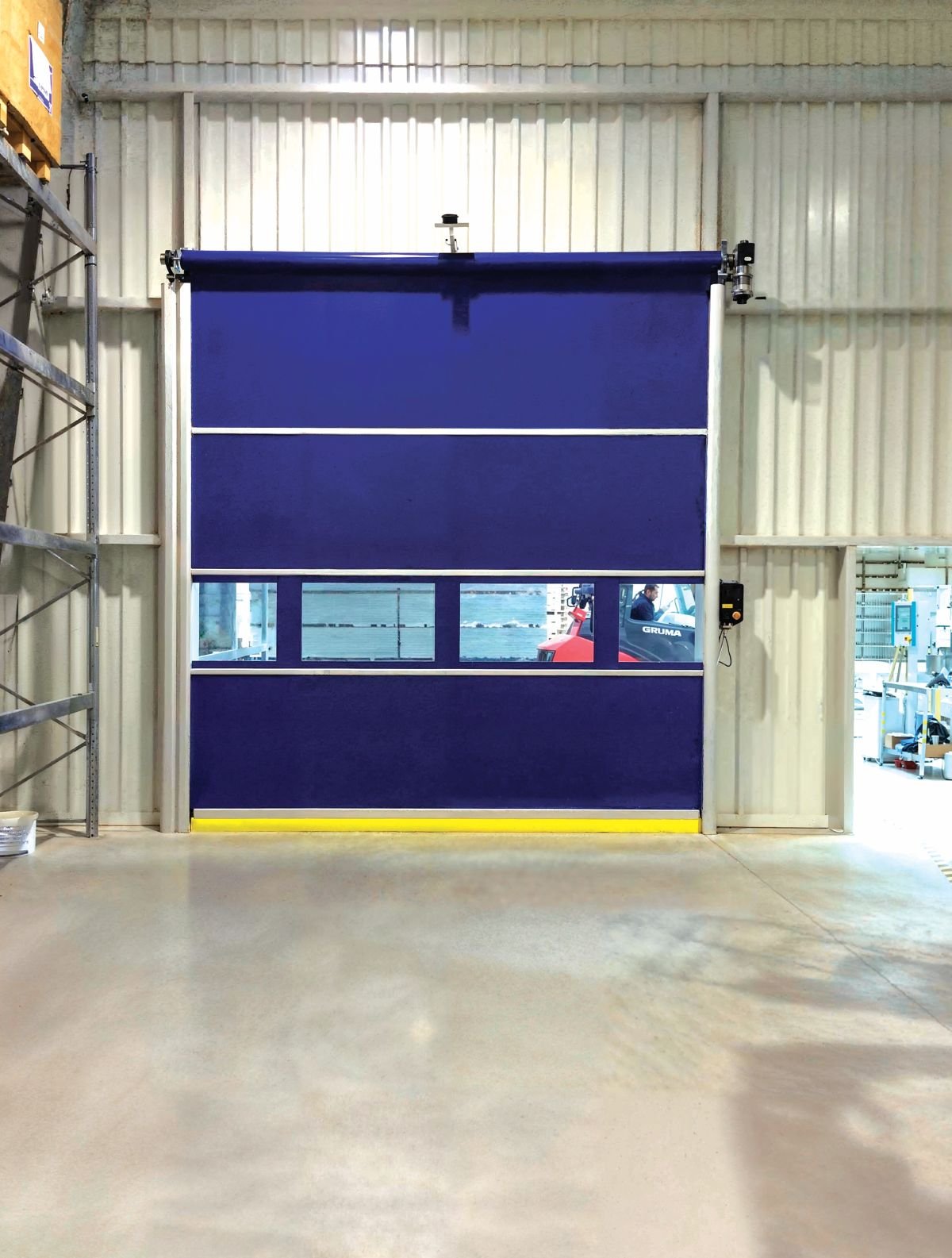

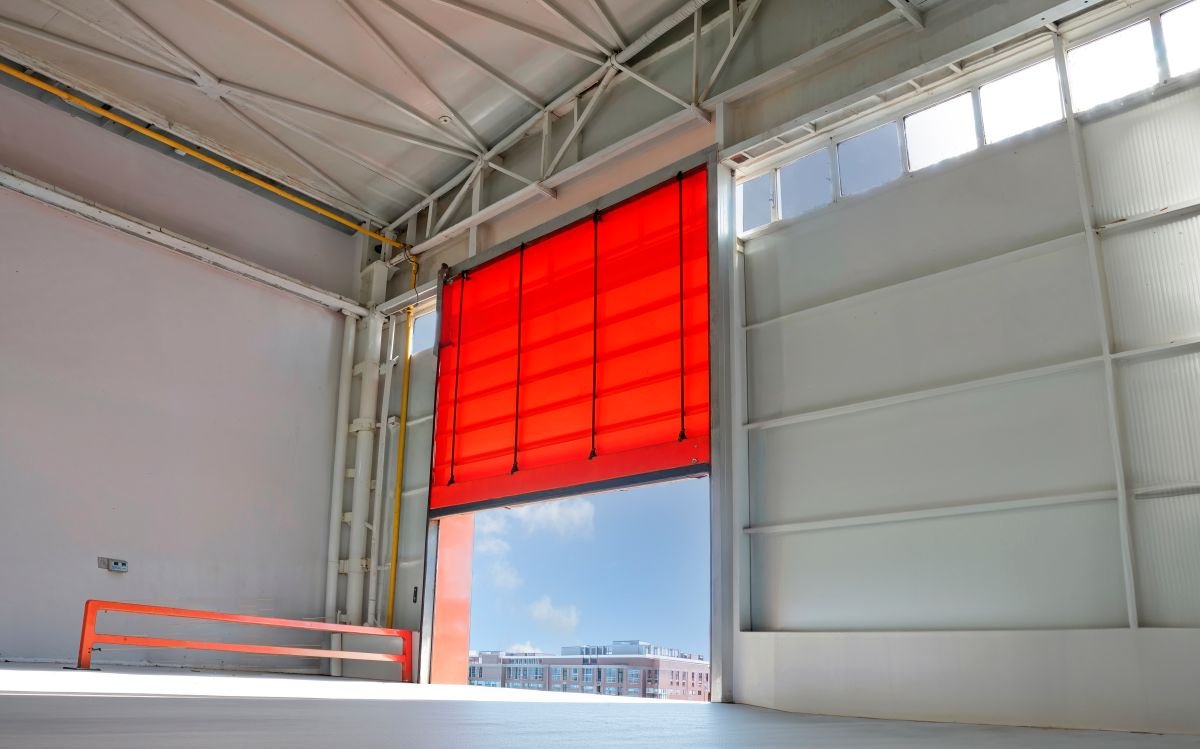

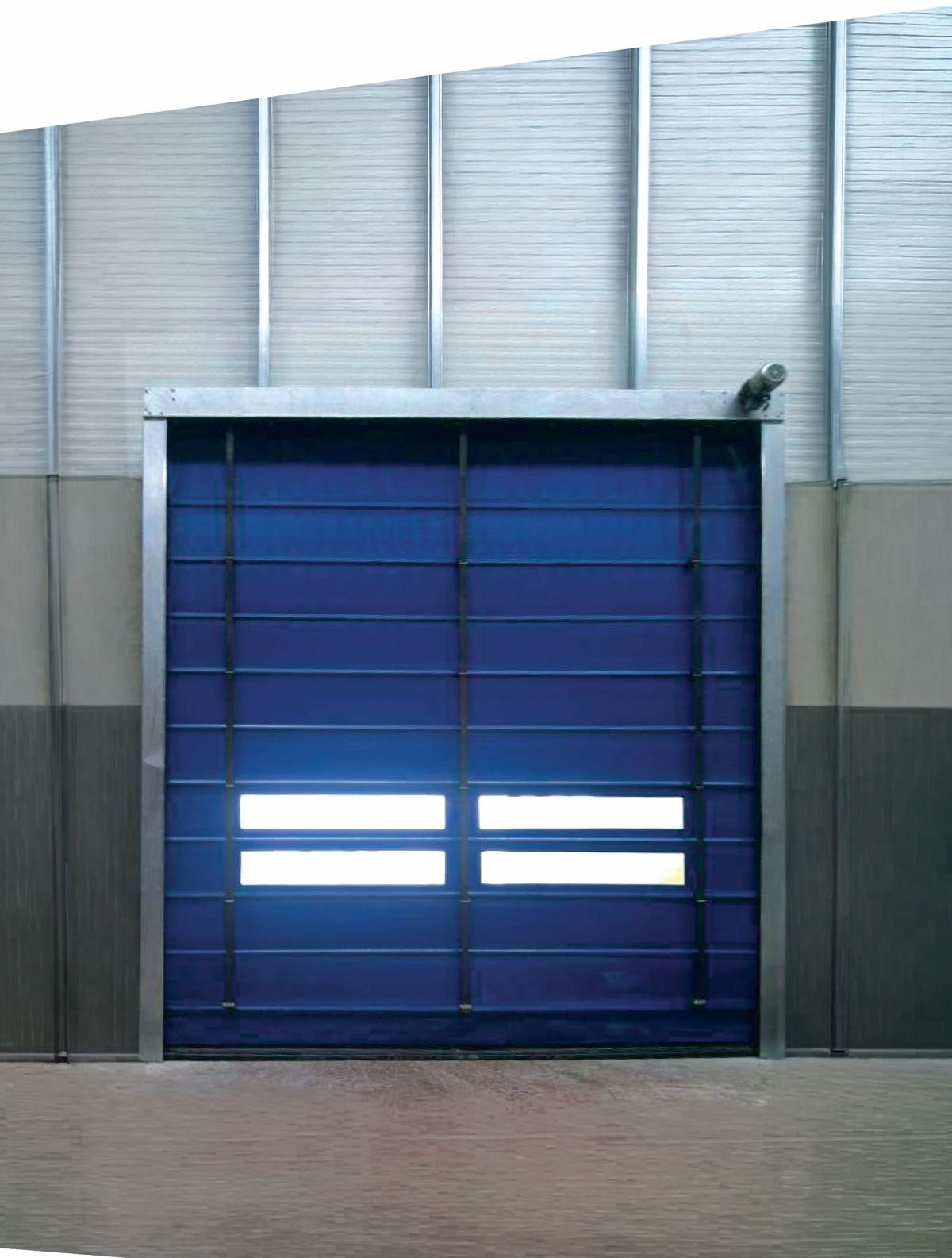

Roll-up PVC Door Folding Type PVC Door

Engineered for optimal performance in industrial environments, the high speed doors are made from high-tier tensile strength imported PVC material. These doors are designed for rapid opening speeds, making them perfect for manufacturing and industrial settings where efficiency and smooth operation are essential. They effectively shield your facility from harsh weather, maintaining a stable internal environment even in extreme conditions.

FeatureRoll-up PVC DoorFolding Type PVC Door
PVC Awning0.8 mm 900g/m² Panama 1100 dtex MEHLER (Germany)0.6 mm 900g/m² Panama 1100 dtex MEHLER (Germany)
Side Rails & Mechanism2 mm galvanized steel2 mm galvanized steel (until 6000mm)
Mechanism Inside Parts3 mm - 5 mm special design laser cutting galvanized steel3 mm - 5 mm special design laser cutting galvanized steel
Cord and SealSpecial design EPDMSpecial design EPDM
Support Bar12 mm solid shaft21-27 mm galvanized pipe
Wind ResistanceMax: 40 km/h²125 km/h²
Engine380 VAC (0.75 kW - 5.5 kW)380 VAC (0.75 kW - 5.5 kW)
Reducer63-75-80 cast aluminum body (Yilmaz Reductor)63-70 cast aluminum body (Yilmaz Reductor)
Brake200 VDC electromagnetic brake200 VDC electromagnetic brake
SwitchChain transferred cycle limit switchConnecting chain switch
SafetySafe photocell, current renovation, pneumatic bottom barSafe photocell, current renovation, pneumatic bottom bar
Flasher / AlarmOptionalOptional
Control Unit380 VAC current limiting, phase control, access compatible 380 VAC current limiting, phase control, access compatible
CabinPlastic (Standard) / Stainless (Optional)Plastic (Standard) / Stainless (Optional)
Protection ClassIP65IP65
Operation FunctionsOn-stop-off and emergency buttonsOn-stop-off and emergency buttons
Adjustable FunctionsAuto shutdown time and manual operationAuto shutdown time and manual operation
Operation Speed0.7 m/sec (can be increased with driver)0.7 m/sec (can be increased)
WindowEye level row (45 cm), can be increasedEye level row (45 cm), can be increased
Color OptionsGrey, White, Blue, Black, Yellow, Orange, Red, GreenGrey, White, Blue, Black, Yellow, Orange, Red, Green
