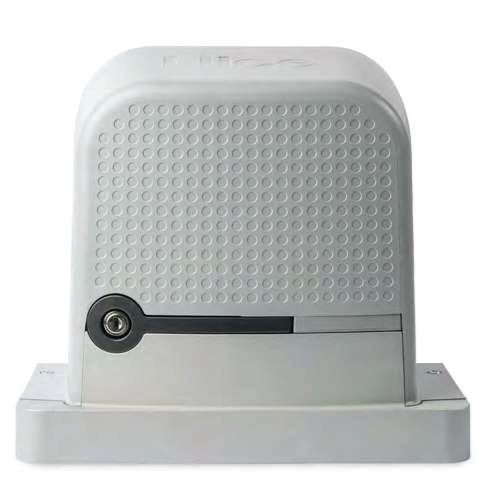

Robo 600
Non-reversible, 230 VAC, electromechanical limit switch, control unit with integrated radio receiver.
Efficient and safe: functional mechanical design and high-performance materials. Safe and easy-to-use release lever.
Easy to programme thanks to the MyNice Pro app, connecting the control unit to the Pro-View or BiDi-WiFi, making all control unit programming easy and automatic.
Easy to install: thanks to compatibility with previous Nice models and horizontal and vertical adjustment systems.
Always connected: even remotely, thanks to the BIDI-WIFI or BIDI-ZWAVE module
TECHNICAL SPECIFICATIONS
| Specification | RO600 |
|---|---|
| Code | RO600 |
| Power supply (VAC 50/60 Hz) | 230 |
| Power (W) | 300 |
| Speed (m/s) | 0,18 |
| Force (N) | 600 |
| Working cycle (cycles/hour) | 20 |
| Protection class (IP) | 44 |
| Operating temperature (°C Min/Max) | -20 ÷ +55 |
| Dimensions (mm) | 340 x 220 x 303 h |
| Weight (kg) | 11 |

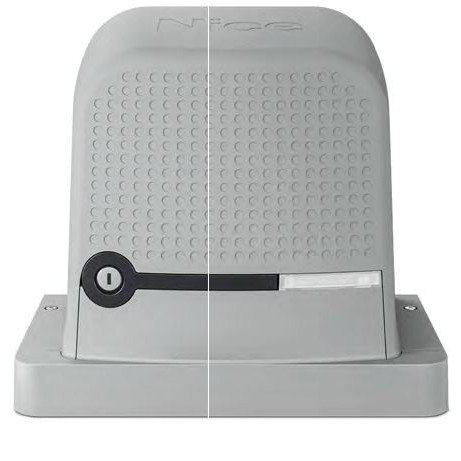

Robus 600/800
Non-reversible, 24 VDC, magnetic lim-it switch, control unit with built-in radio receiver, compatible with optional buffer battery (PS124
Efficient and safe: functional mechanical de-sign and high-performance materials.
Safe and easy-to-use release lever; magnetic limit switch, easy to install and allows for shorter rack length.
Easy to programme thanks to the MyNice Pro app, connecting the control unit to the Pro-View or BiDi-WiFi.
Easy to install:
- control unit with integrated receiver in raised position;
- maximum freedom in horizontal and vertical base adjustment.
- BlueBUS connector allows connections with just two wires between the control unit and up to 7 pairs of light barriers and control, safety and signalling devices;
Smart:
- self-teaching work times;
- control slowdown, speed and force;
- self-diagnosis with status of automation and accessories signalled via the new Eye Check system.
Always connected even remotely, thanks to the BIDI-WIFI or BID-ZWAVE module.
TECHNICAL SPECIFICATIONS
| Code | RBS600 | RBS800 |
|---|---|---|
| ELECTRICAL SPECIFICATIONS | ||
| Power supply (VAC 50/60 Hz) | 230 | 230 |
| Draw (A) | 2,1 | 1,1 |
| Power (W) | 450 | 230 |
| Power in standby (W) | 0,4 | 0,4 |
| PERFORMANCE DATA | ||
| Speed (m/s) | 0,34 | 0,30 |
| Force (N) | 400 | 750 |
| Working cycle (cycles/hour) 4 m leaf | 40 | 35 |
| DIMENSIONAL AND GENERAL DATA | ||
| Protection class (IP) | 44 | |
| Operating temperature (°C Min/Max) | -20 ÷ +55 | |
| Dimensions (mm) | 340x220x303 h | |
| Weight (kg) | 11 | |
Robo 1000/1500
Non-reversible, 230 VAC, electromechanical limit switch, control unit with built-in radio receiver.
Robust and safe: functional mechanical design and high-performance materials.
Safe and easy-to-use release lever.
Easy to programme thanks to the MyNice Pro app, connecting the control unit to the Pro-View or BiDi-WiFi, making all control unit programming easy and automatic.
Easy to install: thanks to compatibility with previous Nice models and horizontal and vertical adjustment systems.
Always connected even remotely, thanks to the BIDI-WIFI or BIDI-ZWAVE module.
TECHNICAL SPECIFICATIONS
| Code | RO1000 | RO1500 |
|---|---|---|
| ELECTRICAL SPECIFICATIONS | ||
| Power supply (VAC 50/60 Hz) | 230 | 230 |
| Draw (A) | 1,6 | 1,7 |
| Power (W) | 350 | 350 |
| Power in standby (W) | <0,45 | <0,45 |
| PERFORMANCE DATA | ||
| Speed (m/s) | 0,18 | 0,16 |
| Force (N) | 680 | 780 |
| Working cycle (cycles/hour) gate 4 m | 16 | 22 |
| DIMENSIONAL AND GENERAL DATA | ||
| Protection class (IP) | 44 | |
| Operating temperature (°C Min/Max) | -20 ÷ +50 | |
| Dimensions (mm) | 363x238x364 h | |
| Weight (kg) | 11,5 | 13 |

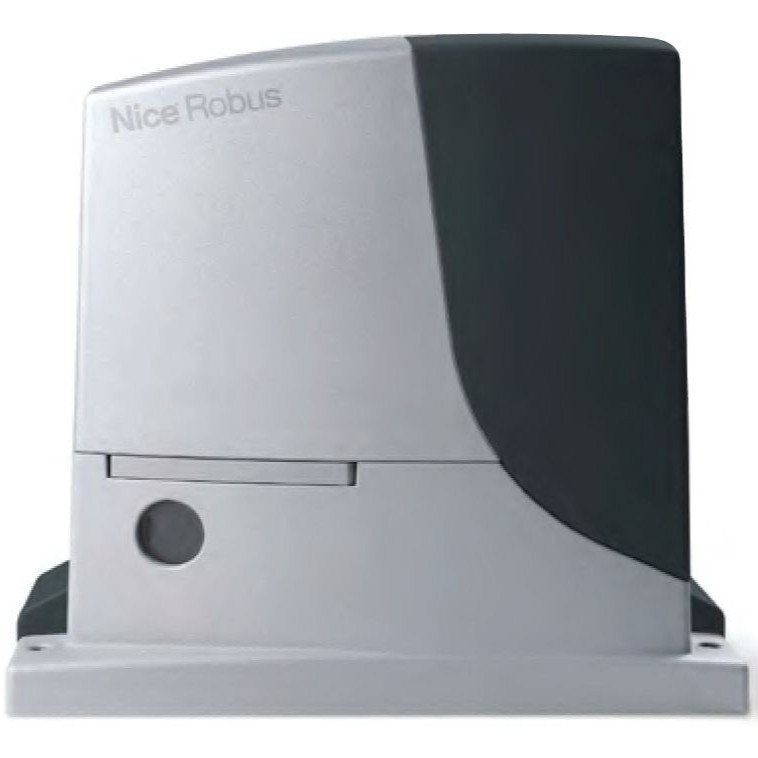

Robus 1000
Versions with electro mechanical limit switch (RB400/RB600/RB1000) and inductive limit switch (RB600P/RB1000P).
Simple: thanks to the BlueBUS system allowing connections with just two wires between the control unit and up to 7 pairs of photocells and control, safety and signalling devices.
Practical control unit and PS124 buffer batteries (optional) connected by practical guided plug-in connector.
Advanced: RB400, RB600 and RB1000 are fitted with a temperature sensor that adapts the motor force to the dimatic conditions while at the same time adjusting the thermal protection. A master/slave selection also automatically synchronises 2 motors, allowing automation of sliding gates with two opposing leaves.
Smart: thanks to obstacle detection and auto-matic programming of operating times. Self-di-agnostics with indications via the flashing light. 8 programming levels.
Safe: adjustable acceleration and deceleration at the start and end of each manoeuver.
Sturdy: release with aluminum handle for easy opening.
Quiet: gear motor on bearings.
TECHNICAL SPECIFICATIONS
| Code | RBS1000 |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| Power supply (VAC 50/60 Hz) | 230 |
| Draw (A) | 2,3 |
| Power (W) | 450 |
| PERFORMANCE DATA | |
| Speed (m/s) | 0,28 |
| Force (N) | 900 |
| Working cycle (cycles/hour) | 50 |
| DIMENSIONAL AND GENERAL DATA | |
| Protection class (IP) | 44 |
| Operating temperature (°C Min/Max) | -20 ÷ +50 |
| Dimensions (mm) | 330x210x303 h |
| Weight (kg) | 13 |
Run 2500
Suitable for use in extreme conditions and in systems intended for intensive use.
Self-ventilated motor with inductive limit switch (RUN1800P/RUN2500P) and electromechanical limit switch (RUN1800/RUN2500/RUN25001).
Easy to install: the BlueBUS system allows connections with just two wires between the control unit and up to 15 control, safety and signalling devices.
Safe: the acceleration (at the start of the manoeuvre) and deceleration (at the end of the manoeuvre) settings are precise and reliable.
Advanced temperature sensor: Run is able to manage its force, adapting it to the different climatic and environmental conditions while at the same time adjusting the thermal protection and self-ventilation intensity depending on the temperature detected.
Master/slave selection: also automatically synchronies 2 motors, allowing automation of sliding gates with two opposing leaves.
Practical and functional: the control unit (and the inverter in the RUN2500l version) housed in Run can be connected via a practical plug-in connector.
Quiet: gear motor on bearings.
RUN25001 version with integrated inverter.
Flawless movement: the inverter enables the three-phase motor to be powered and operated with 230 VAC single-phase current, adjusting the frequency to regulate the automation speed from a minimum of 8.2 m/min to a maximum of 15.4 m/min. During the automation deceleration phase, the inverter communicates with the control unit and increases the torque, improving performance and reducing the risk of the automation blocking in the presence of obstacles.
TECHNICAL SPECIFICATIONS
| Code | run2500/2500p |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| Power supply (VAC 50/60 Hz) | 230/50 |
| Draw (A) | 3,8 |
| Power (W) | 870 |
| PERFORMANCE DATA | |
| Speed (m/s) | 0,17 |
| Force (N) | 1390 |
| Working cycle (cycles/hour) | 42 |
| DIMENSIONAL AND GENERAL DATA | |
| Protection class (IP) | 44 |
| Operating temperature (°C Min/Max) | -20 ÷ +50 |
| Dimensions (mm) | 400x255x390 h |
| Weight (kg) | 24,5 |

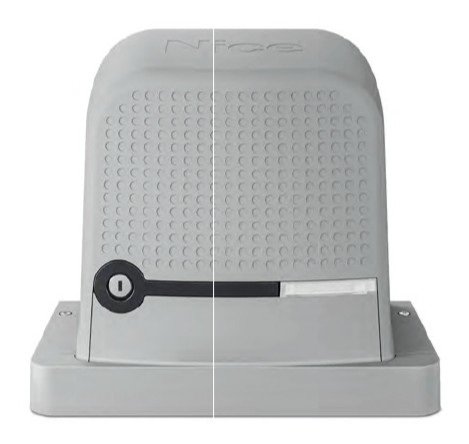

Robus 600 HS
Non-reversible, 24 VDC, magnetic limit switch, control unit with built-in radio receiver, compatible with optional buffer battery (PS124).
Ideal for intensive use: a 4 m gate opens in less than 10 seconds.*
Safe and easy-to-use release lever; magnetic limit switch, easy to install and allows for shorter rack length.
Easy to programme thanks to the MyNice Pro app, connecting the control unit to the Pro-View or BiDi-WiFi.
Easy to install:
- expandable control unit with accessory modules to increase the number of inputs or outputs;
- fastening backward-compatible with previous Nice models (Rox, Road, Robus series);
- BlueBUS connector allows connections with just two wires between the control unit and up to 7 pairs of light barriers and control, safety and signalling devices;
Smart:
- self-teaching work times;
- control slowdown, speed and force;
- self-diagnosis with status of automation and accessories signalled via the new Eye Check system.
Always connected even remotely, thanks to the built-in Wi-Fi or the BIDI-ZWAVE plug-in module.
* In a standard installation, excluding acceleration and deceleration.
TECHNICAL SPECIFICATIONS
| Code | RBS600HS |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| Power supply (VAC 50/60 Hz) | 230 |
| Draw (A) | 3,1 |
| Power (W) | 450 |
| PERFORMANCE DATA | |
| Speed (m/s) | 0,44 |
| Force (N) | 360 |
| Working cycle (cycles/hour) 4 m leaf | 40 |
| DIMENSIONAL AND GENERAL DATA | |
| Protection class (IP) | 44 |
| Operating temperature (°C Min/Max) | -20 ÷ +50 |
| Dimensions (mm) | 340x220x303 h |
| Weight (kg) | 11 |

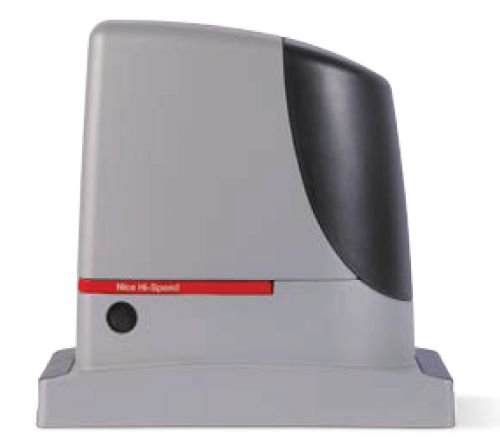

Run HS
24 VDC electromechanical gearmotor.
Fast opening and closing manoeuvres: 4 m gate in about 6 seconds,* while RUN1200HS opens a 7 m gate in about 18 seconds.*
The fastest: ideal for heavy-duty industrial applications.
Simple: thanks to the BlueBUS system allowing connections with just two wires between the control unit and up to 7 pairs of photocells and control, safety and signalling devices.
Practical: control unit and PS524 battery charger (for connection of two B12-B batteries) housed in the gearmotor, connected by practical guided plug-in connector.
Advanced: the temperature sensor adapts the motor force to the climatic conditions while at the same time adjusting the thermal protection; a master/slave selection also automatically synchronises 2 motors, allowing automation of sliding gates with two opposing leaves.
Smart: thanks to obstacle detection and automatic programming of operating times. Self-diagnostics with indications via the flashing light. 8 programming levels.
Safe: adjustable acceleration and deceleration at the start and end of each manoeuvre.
Sturdy: release with aluminium handle for easy opening.
Quiet: gearmotor on bearings.
* Considering standard installation, excluding acceleration and deceleration. 60 Hz version available on request.
TECHNICAL SPECIFICATIONS
| Code | RUN1200HS |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| Power supply (VAC 50/60 Hz) | 230 |
| Draw (A) | 2 |
| Power (W) | 415 |
| PERFORMANCE DATA | |
| Speed (m/s) | 0,37 |
| Force (N) | 790 |
| Working cycle (cycles/hour) | 60 |
| DIMENSIONAL AND GENERAL DATA | |
| Protection class (IP) | 44 |
| Operating temperature (°C Min/Max) | -20 ÷ +50 |
| Dimensions (mm) | 400x255x387 h |
| Weight (kg) | 24,5 |
Tub
Non-reversible 400 VAC electromechanical gearmotor, with built-in D-PRO 500 control unit.
Powerful: ideal for automating large industrial gates.
Functionality and safety: programmable, with electromechanical brake to eliminate gate inertia. Self-ventilated motor to increase the work cycle.
Maximum durability and silent operation: metal and bronze gears.
Advanced: Tub satisfies all control needs thanks to the possibility of easily and precisely managing the various functions with the Pro-View programmer.
Practical: the lever release makes this operation easy and safe.
TECHNICAL SPECIFICATIONS
| Code | TUB4000 |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| Power supply (VAC 50 Hz)* | 400 |
| Draw (A) | 1,6 |
| Power (W) | 580 |
| PERFORMANCE DATA | |
| Speed (m/s) | 0,16 |
| Force (N) | 7740 |
| Working cycle (cycles/hour)** | 42 |
| DIMENSIONAL AND GENERAL DATA | |
| Protection class (IP) | 54 |
| Operating temperature (°C Min/Max) | -20 ÷ +50 |
| Dimensions (mm) | 480x240x580 h |
| Weight (kg) | 60 |
| * Can also be used at 60 Hz with corresponding change in performance. ** With leaves up to 5 m. | |
