Wide System
Gearmotor, 24 VDC, with integrated control unit, adjustable speed and crush protection function.

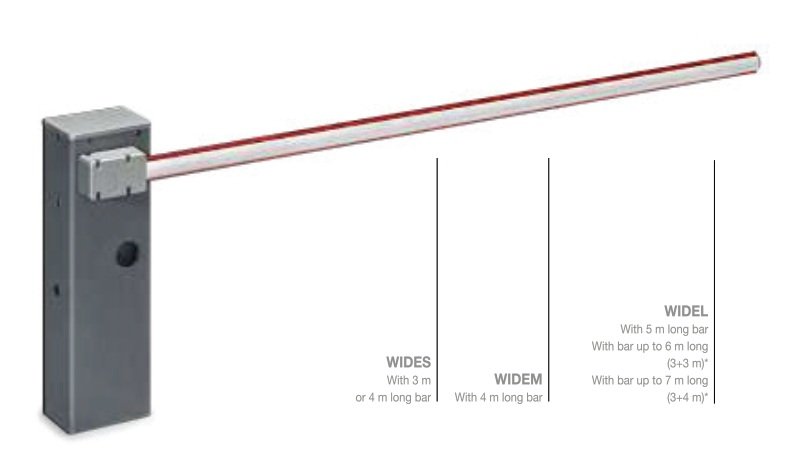

Two versions of case, in galvanised and painted steel, or in stainless steel (AISI 304) in three sizes for bars from 3 to 7 m long.
Easier programming and maintenance: one integrated control unit for all versions, located in the bottom part of the barrier body.
Large door at the front for quick and easy access.
Easily removable reinforced gearmotor support.
Maximum safety: crush protection in opening and closing; supports inside the barrier body for minimum visual impact.
Speed adjustable electronically from 3.5" (Wide M) to 5" (Wide L) for minimum opening time.
Strength, reliability and ease of installation: elliptical section bar for lighter weight and resistance to gusts of wind; special profile for quick mounting of accessories.
Optional swivel attachment to safeguard the barrier in the event of impact.
The bar can be mounted on either the right or left side.
Easy balancing thanks to a practical spring tension regulator.
No blackouts: operation is guaranteed even without mains power, thanks to the PS234 buffer battery for integrated installation in the control unit.
Release with triangular key protected from external agents.
TECHNICAL SPECIFICATIONS
| Code | WIDES | WIDEM | WIDEL |
|---|---|---|---|
| ELECTRICAL SPECIFICATIONS | |||
| Power supply (VAC 50/60 Hz) | 230 | 230 | 230 |
| Power supply (VDC) | 24 | 24 | 24 |
| Draw (A) | 1 | 1,1 | 0,6 |
| Power (W) | 300 | 300 | 300 |
| PERFORMANCE DATA | |||
| Speed (s) | 4 | 3,5 | 5 |
| Torque (Nm) | 100 | 140 | 200 |
| Working cycle (cycles/hour) | 100 | 300 | 200 |
| DIMENSIONAL AND GENERAL DATA | |||
| Protection class (IP) | 54 | 54 | 54 |
| Operating temperature (°C Min/Max) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
| Dimensions (mm) | 280x178x1000 h | 320x205x1000 h | 420x205x1030 h |
| Weight (kg) | 40 | 46 | 54 |
